Design Flexibility

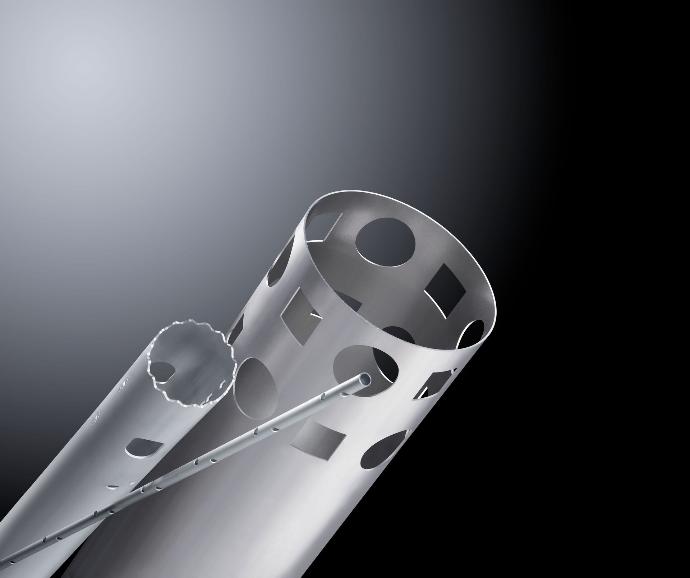

Laser cutting for round, oval, and custom-shaped tubes simplifies complex design and manufacturing challenges, creating new possibilities for welded structures and engineered assemblies.
To prepare quotations and production, please provide 3D models in .STP format together with technical drawings in .PDF format.
Industrial laser marking is available upon request, allowing part identification codes to be engraved for quick and reliable component recognition, particularly within complex assemblies.
Tube Processing Brochure (PDF)
What materials do we process?
RMC offers ROUND, OVAL and CUSTOM SHAPED PIPE LASER CUTTING services for:
STEEL, STAINLESS STEEL, ALUMINUM, COPPER and BRASS
CARBON STEEL
up to #8 mm STANDARD CUT
up to #8mm ANGLED CUT
STAINLESS STEEL
up to #6 mm STANDARD CUT
up to #4 mm ANGLED CUT
ALUMINIUM
up to # 4 mm ANGLED CUT
COPPER/BRASS
up to
#4 mm STANDARD CUT
170 mm
15 mm pipe processing
Maximum circumscribed profile diameter
6.5 meters
Maximum processing length
Up to 45 degrees
High-Precision Bevel Cutting
RMC Equipment for Round, Oval & Custom Tube Laser Cutting
TRULASER TUBE 3000 (2023)
Power: 3kW
Using the latest TRUMPF tube laser technology, we provide complete 3D laser cutting services for tubes, profiles, and structural sections. This advanced equipment increases production efficiency, expands manufacturing possibilities, and enables the processing of a wide range of materials while consistently delivering exceptional precision.
Bevel Cutting – Precision Angled Cutting
Our tube laser cutting system is equipped with advanced bevel cutting technology specifically designed for round tubes, enabling highly accurate angled cuts of up to 45°.
Key Advantages
High-precision bevel cutting up to 45°
Greater design flexibility
Suitable for steel, stainless steel, and aluminum
Laser Countersinking for Tube Holes
Laser countersinking creates beveled edges around holes cut into round or rectangular metal tubes. This process is commonly used to allow screw heads to sit flush with the tube surface, improving both functionality and appearance.
ADVANTAGES
Advanced technology that reduces production time and manufacturing costs.
Laser-cut and countersunk tubes integrate seamlessly into mechanically fastened assemblies.
FROM CUTTING TO COLOR!
Imagination is the limit.You design, we execute with precision!
