Debitare laser tablă
What materials do we process?
CARBON STEEL up to # 30 mm
CARBON STEEL from # 0.3 m

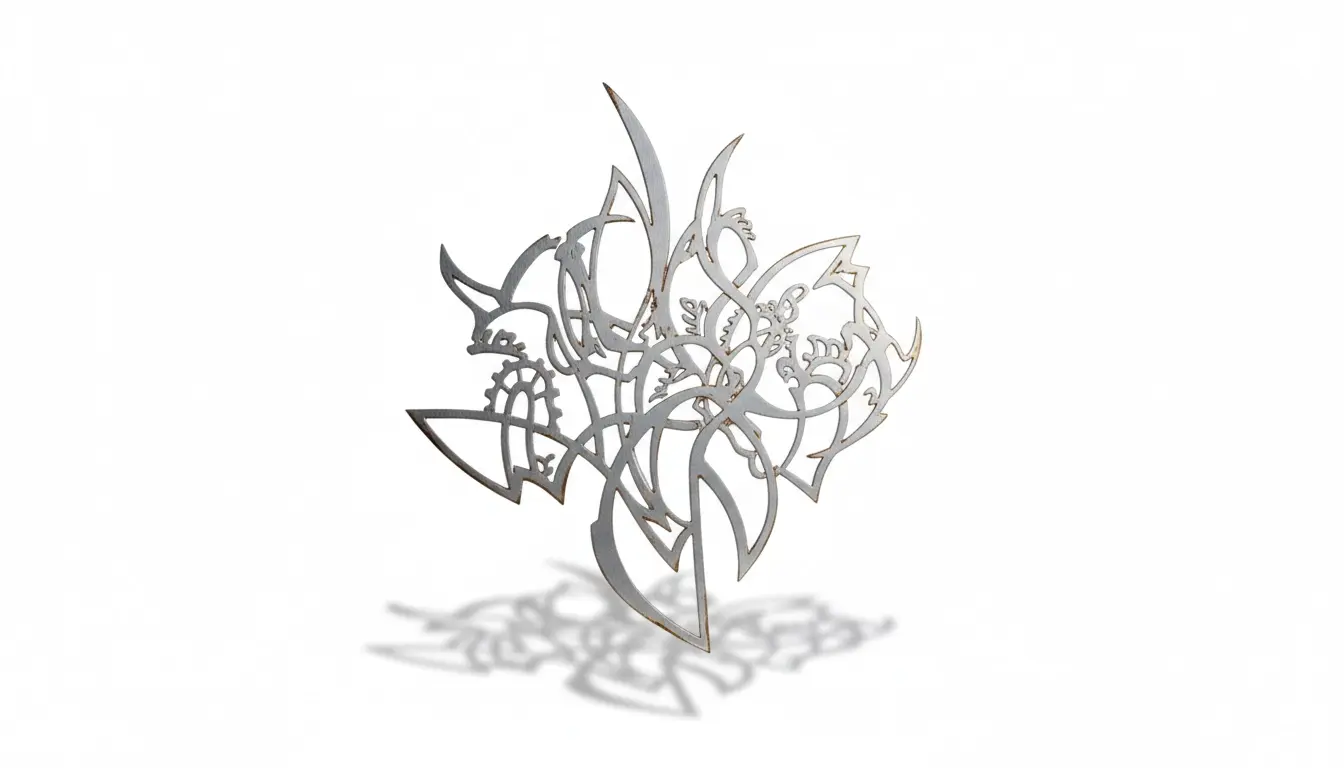

ALUMINIUM up to # 30 mm
STAINLESS STEEL up to # 40 mm

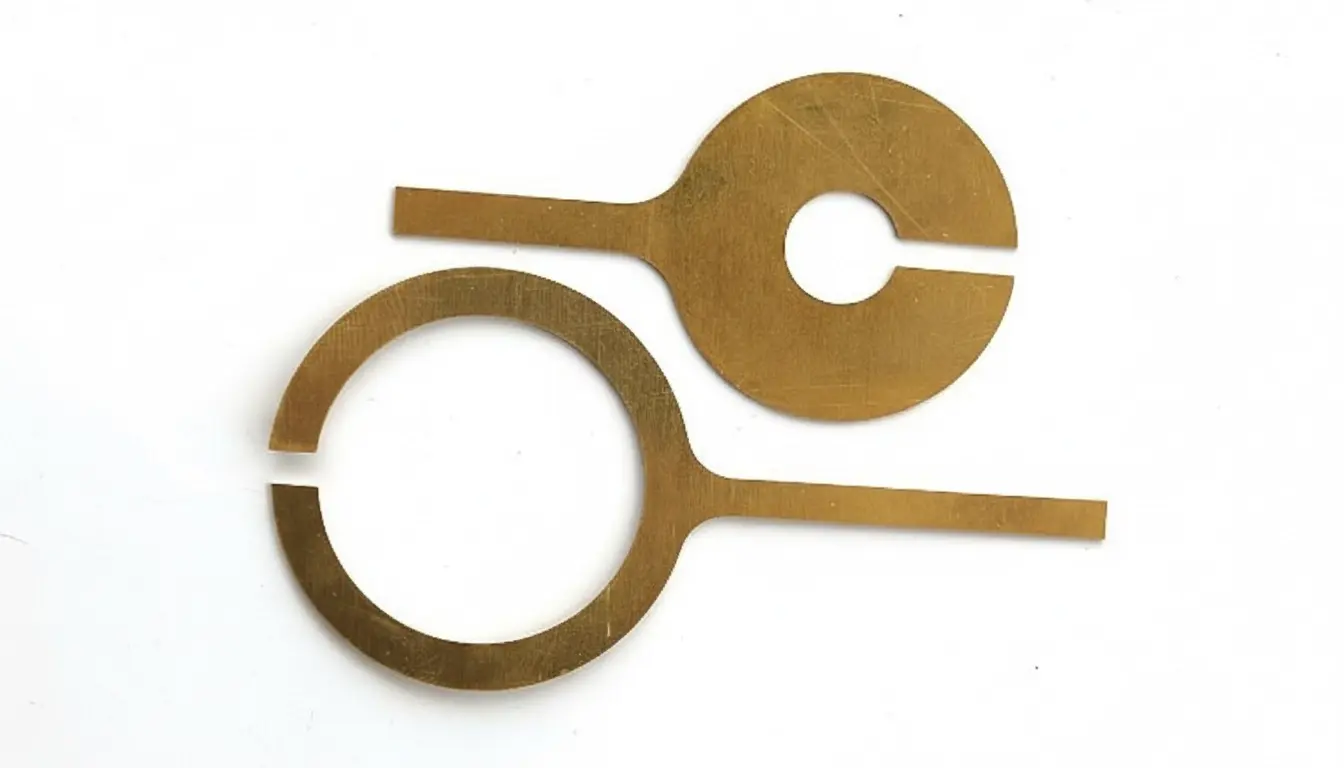

BRASS up to # 12 mm

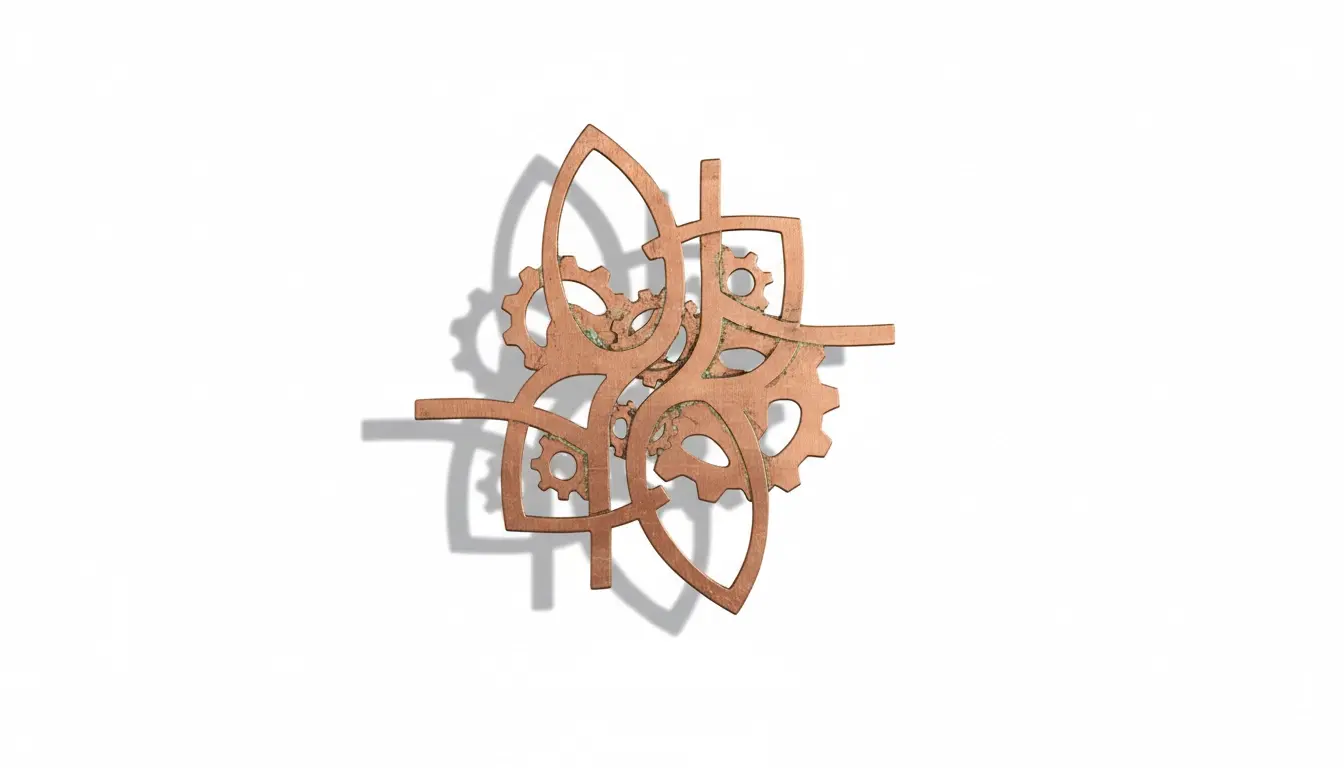

COPPER up to # 16 mm
* For a professional data processing, please send us the working sketches in “.dwg”, “.dxf” or “.stp” format, the materials and quantities for each individual part, as well as your option regarding material sourcing.
Upon request, we can perform the INDUSTRIAL MARKING of the codes, in order to help our clients quickly identify the parts, especially when they are part of an assembly.
PLIANT DEBITARE LASER TABLĂ
L3030 TRULASER (2005)
Power:
3. KW
Machine size:
4mx2m
L50 TRULASER FIBER (2017)
Power: 6 KW
Machine size: 4mx2m
L50 TRULASER FIBER (2020)
Power: 6 KW
Machine size: 3mx1.5m
L5040 TRULASER (2023)
Power:
10 KW
Machine size:
3mx1.5m
EDGE LINE BEVEL or ANGLED CUTTING OF SHEET METAL
The chamfering of the cutting edges and the countersinking of the holes are done directly on the laser cutting machine, which is an extraordinary advantage in the process of designing and manufacturing metal structures.
Chamfer with a depth of up to 6mm for an angle of 30°.
Chamfer with a depth of up to 3mm for an angle of 45°.
Countersink for holes ranging from M3 to M10.
The technical capability to perform angled cutting on sheet metal (chamfering and countersinking) implies greatly improved costs in the production process.
